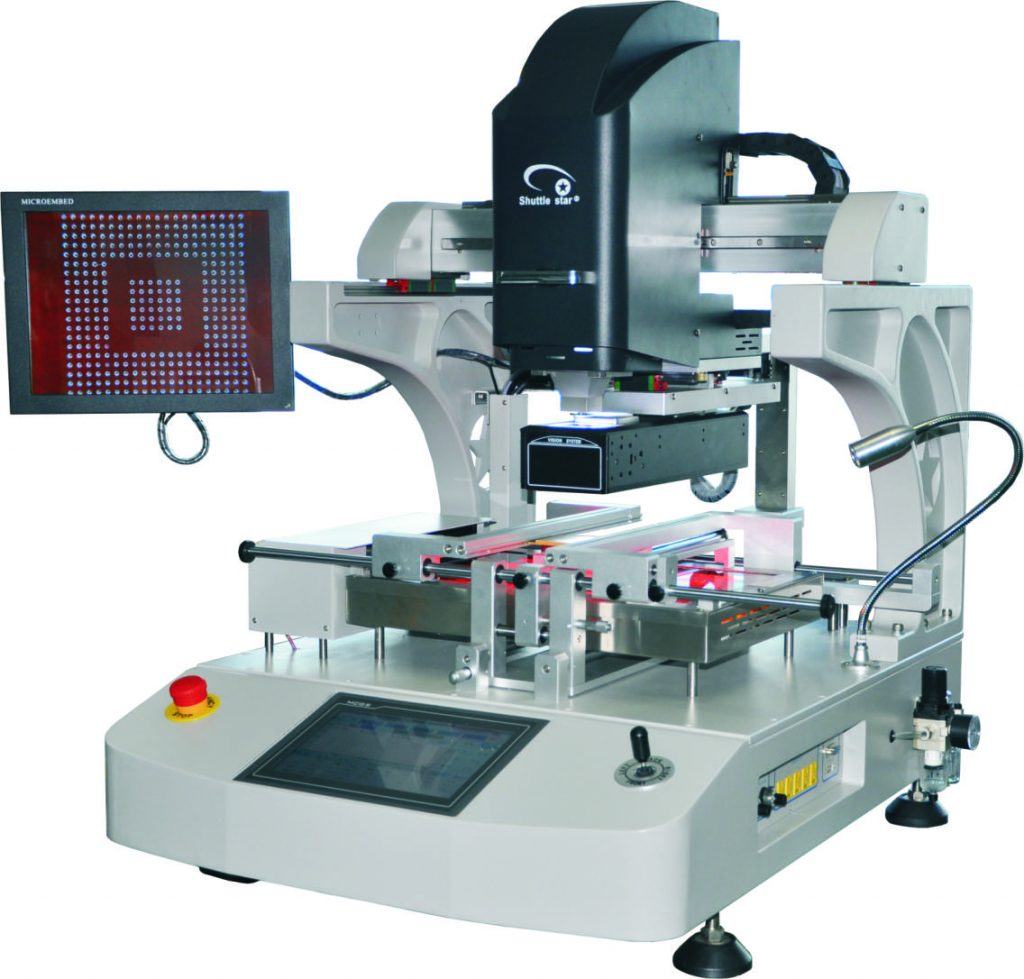

E6250U BGA Rework Station

NEW! Nitrogen Capable Split Vision BGA Rework Station for High Yield Lead Free BGA Rework.

With a movable X/Y top and bottom gas heaters that allow you to easily rework components at the edge of large PCB's.

Top of the line inovative design is eon's ahead of all other major brands is a must for all Contract Manufacturer's.

For high volume BGA Rework on even the largest computer and networking boards! This BGA Rework System has High-Definition Camera, Auto-X-Y and Theta Split-Vision Alignment for Automatic Removal, Placement, and Soldering of BGAs, CGA's, CSPs, QFPs, LGA's and Other SMDs.  The rapid-IR underheater is a must for large PCB's with many layers or heavy ground planes.

Features:

  • High Resolution HDMI Vision System
  • Fits Boards up to 36"
  • Places components from 4mm and up.  Optional 1mm upgrade available.
  • Five Thermal Couple Inputs.
  • Motorized X, Y and Theta controls.
  • Auto soldering and mounting function.
  • 1000 watt component heater (Top Side)
  • 1000 watt movable component heater (Bottom Side)
  • 6-zone 3600 Watt rapid-IR underheater
  • Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
  • Color optical system with functions of split vision, zoom in/out and micro-adjust.
  • 15’’ high-definition LCD monitor.
  • Industrial PLC control.
  • 1 year part warranty.
  • Lifetime technical support.
  • Installation, Set Up and Employee training is available at an additional fee.

Accessories Include:

  • 5 pcs upper nozzle set.
  • Component pick up tube set.
  • 2-Jars of solder balls.

Price is: 34,500.00 plus shipping.

Price includes one day on site set up and operational training in the USA, Canada and Mexico.

Add one additional day of our BGA Rework Process Implementation Training for only $3,500.00 more.



Order your BGA Rework Station today!
